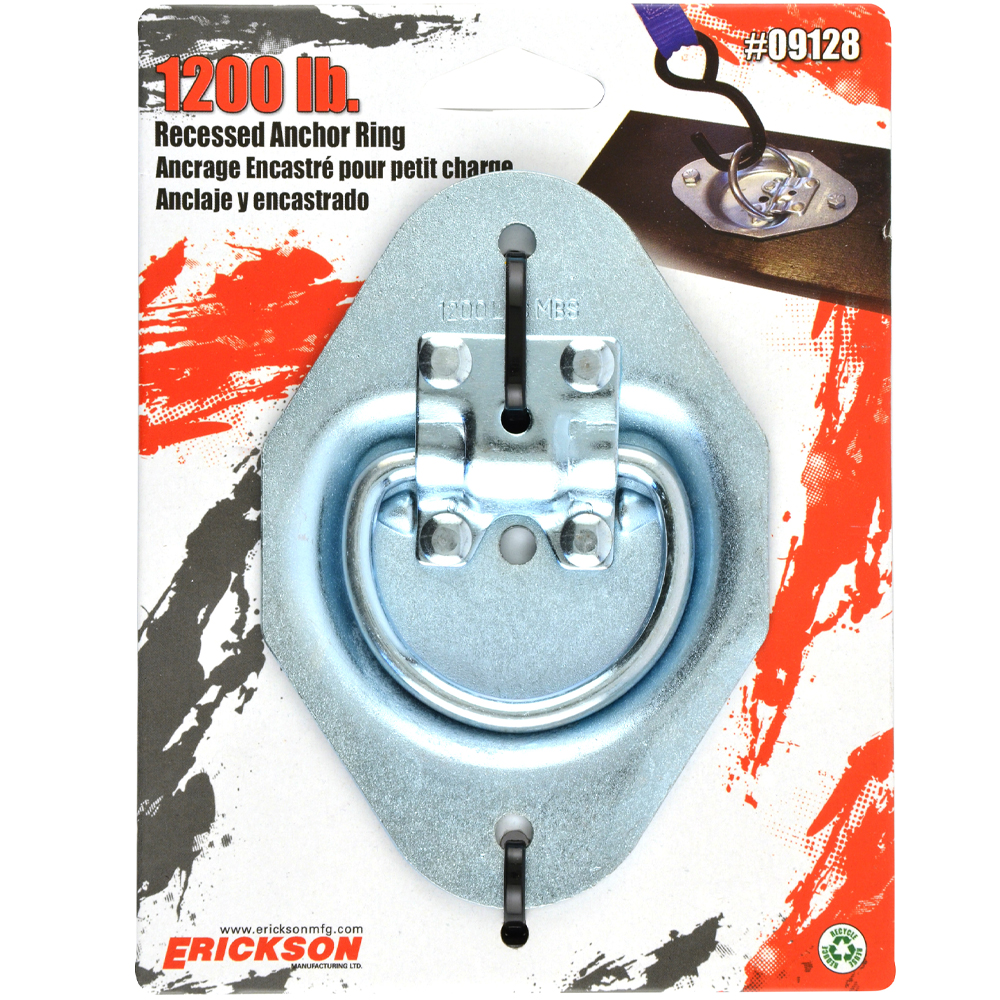

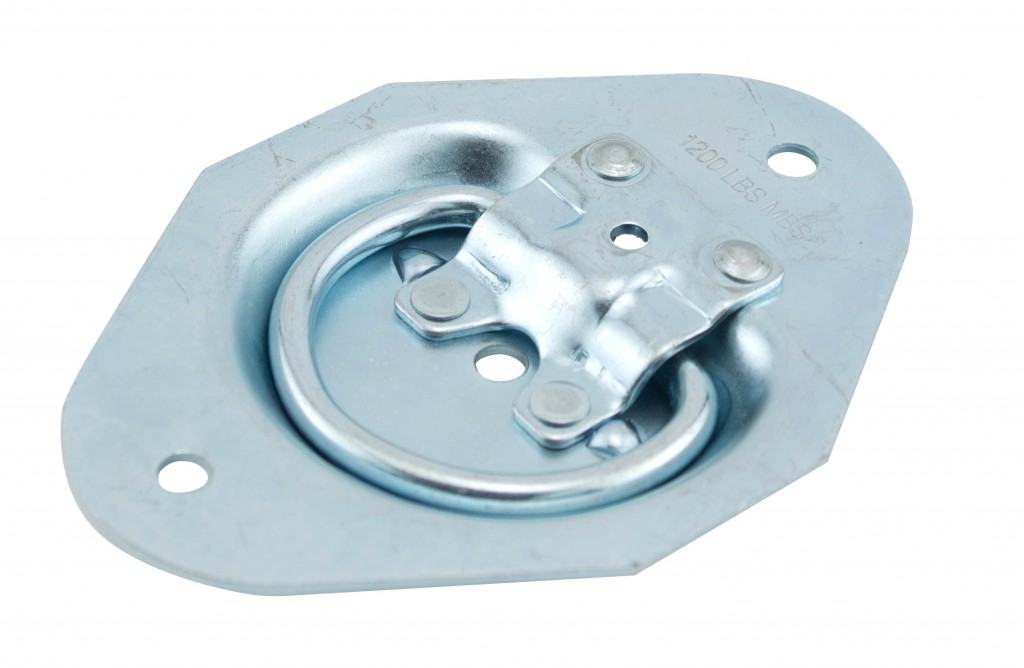

Recessed Anchor Ring 1200 lb Load Capacity by ERICKSON
ERICKSON MANUFACTURINGAnchor rings are a quick and easy way to add anchor points to your trailer. They can be mounted on the wall or the floors. They are incredibly easy to install, which makes them very popular. The mounting plate allows you to easily mount this ring to a floor or a wall The zinc plated finish protects against corrosion, extending the life of the anchor.
FEATURES:
- The mounting plate allows you to easily mount this ring to a floor or a wall
- The zinc plated finish protects against corrosion, extending the life of the anchor
- This anchor point is very versatile with different hook types
- 1200 lb. Breaking Strength
- 400 lb. Working Load Limit
More Details
Proper Use/Safety Factors
Always check to make sure the anchor ring is not damaged before use
Always check to make sure the anchor ring is mounted correctly before use.
If either of the above are true, do not use
Be sure mounting bolts are installed in main frames in the floors or walls
Never exceed the weight restrictions on this product
Specifications
Ring Specs:
Recesses: 0.5″
Recessed Area Length: 2.2″
Recessed Area Width: 2.375″
Diameter: 2″ (inside)
Height: 1″ (inside)
Thickness: 0.25″
Base Plate Specs:
Length: 5″
Width: 3.5″
4 hole bolt base
Mount hole dimensions: 0.375″ holes on 3″ center
Always use grade 5 bolts or better for securing anchor (not included)
Finish: Zinc Plated
How to Use
Proper Use/Safety Factors
Always check to make sure the anchor ring is not damaged before use
Always check to make sure the anchor ring is mounted correctly before use.
If either of the above are true, do not use
Be sure mounting bolts are installed in main frames in the floors or walls
Never exceed the weight restrictions on this product
