BORING BARS & SETS

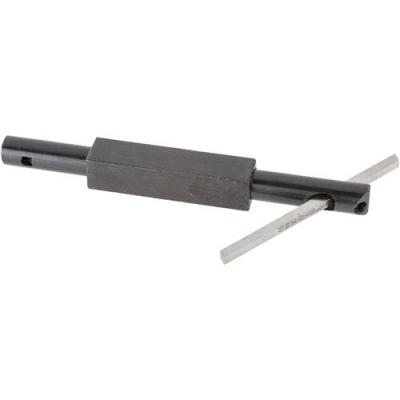

BD-1 1/4" Dia. x 5" OAL 5/32" Round Double End Boring Bar .
- 1/4" X 5" Double End Boring Bar (90/45 Degree)
- One end is 90° and one end is 45°.
- Straight shank.
- Tool bits are not included but are sold separately.
- Style Number is BD-1
- Tool bit size is 5/32".
- Tool bit type is round.
Kit includes 2" boring head, R8 shank, & 9 piece C6 carbide tipped boring bar set
- HIGH QUALITY, built to perform
- High Precision, .0005″ Adjustment Per Graduation
9 Pc. 1/2" Carbide Tipped Boring Bar Set
- 9 Piece boring bar set features C-6 carbide for use in harder materials but also works great in aluminum and other soft metals
- All shanks are held to 0.0000-0.0005" from the nominal diameter
- Made of special heat treated alloy steel
- Shank Diameter- 1/2"
2'' Boring Head
- Head size: 2"
- Boring bar Hole: 3/4"
- Tool Capacity (Cross Hole Diameter): 1/2"
- Head Dial: 7/8''-20
- Max offset: 5/8"
- Graduation: .002''
R-8 Shank Holder
- R-8 Shank to fit all of the most popular milling machines
- R-8 Shank to boring head thread is 1-1/2×18
- Broached holes accept high speed steel and carbide tool bits
- Machined from selected steel for greater strength and rigidity
- Black oxide finish

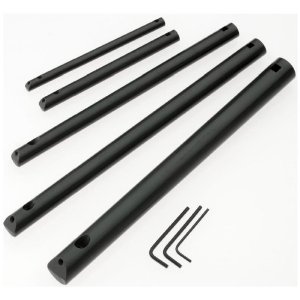

- Bars have one 45 degree end and one 90 degree end
- Sizes: 1/4",5/16",3/8" & 1/2"
- Comes in plastic pouch.
3/8" Shank 9 pc. Carbide Tipped Boring Bar Set
C-6 carbide for steel and alloy steel is well designed so that the same bar can bore flat bottom holes or faces. Alloy steel shanks are hardened and ground to +0"-.0005".
- 9 Piece boring bar set features C-6 carbide for use in harder materials but also works great in aluminum and other soft metals All shanks are held to 0.0000-0.0005" from the nominal diameter and made of special heat treated alloy steel. Shank Diameter- 3/8".
Contains:
- (3) Pcs. 5/16" minimum bore
(1 ea. 3/4" bore depth x 2" overall, 1 ea. 1-1/8" x 2-3/8", & 1 ea. 1-1/2" x 2-3/4")
- (3) Pcs. 3/8" minimum bore
(1 ea. 15/16" bore depth x 2-3/16" overall, 1 ea. 1-13/32" x 2-21/32", & 1 ea. 1-7/82" x 3-1/8"); (3) pcs. 7/16" minimum bore (1 ea. 1-1/8" bore depth x 2-3/8" overall, 1 ea. 1-11/16" x 3-15/16", & 1 ea. 2-1/4" x 3-1/2"
1/2" Shank 9 pc. Carbide Tipped Boring Bar Set . C-6 carbide for steel and alloy steel it is well designed so that the same bar can bore flat bottom holes or faces. Alloy steel shanks are hardened and ground to +0"-.0005".
- 9 Piece boring bar set features C-6 carbide for use in harder materials but also works great in aluminum and other soft metals
- All shanks are held to 0.0000-0.0005" from the nominal diameter and made of special heat treated alloy steel
- Shank Diameter- 1/2"
5/8" Shank 12 pc. Carbide Tipped Boring Bar Set . C-6 carbide for steel and alloy steel it is well designed so that the same bar can bore flat bottom holes or faces. Alloy steel shanks are hardened and ground to +0"-.0005".
- General purpose cutting tools designed to be used for machining a variety of different sized holes.
- For boring operations in both large or small starting holes.
- Used for a variety of different boring operations.
- Used in a toolholder for lathe boring applications or they may be mounted in a boring head for boring in a milling machine and can also be used in other machines as well.
- Right Hand.
- End Type: Single
- High speed steel with carbide tips.
- Bright and black oxide finishes.
SPECS:
- Shank Diameter- 5/8
- All shanks are held to 0.0000-0.0005" from the nominal diameter and made of special heat treated alloy steel
- Minimum Boring Range: 5/16" - 11/16" (see below)
- Overall Length: 2-1/4" to 5-1/4" (see below)
- Boring Depth Range: 3/4" to 3-3/4" (see below)
C-6 carbide for steel and alloy steel it is well designed so that the same bar can bore flat bottom holes or faces.
- Alloy steel shanks are hardened and ground to +0"-.0005".
- General purpose cutting tools designed to be used for machining a variety of different sized holes.
- For boring operations in both large or small starting holes.
- Used for a variety of different boring operations.
- Used in a toolholder for lathe boring applications or they may be mounted in a boring head for boring in a milling machine and can also be used in other machines as well.
- Right Hand.
- End Type: Single
- High speed steel with carbide tips.
- Bright and black oxide finishes.
(1) Each Of Sizes: 3-1/8", 3-11/16", 4-1/4", 3-1/2", 5", 3-7/8", 4-13-16", 5-3/4", 4-1/4”, 5-3/8", 6-1/2"
PE900 1" Shank 7 pc. Carbide Tipped Boring Bar Set . C-6 carbide for steel and alloy steel it is well designed so that the same bar can bore flat bottom holes or faces. Alloy steel shanks are hardened and ground to +0"-.0005".
6 pc Mini Bore Solid Carbide Stems 3/8" Steel Shanks Made in U.S.A. .
Sizes: MA1,MA2,MA3,MA4,MA5,MA6.
Supplied in wood block.
4PCS/SET INDEXABLE BORING BARS
- EXTREME FINE GLOSS FINSH
- DIAMOND CCMT INSERTS
- NEGATIVE 5° END AND SIDE CUTTING ANGLE
- ALL BORING BARS IN FINE WOODEN CASE
- ALL BORING BARS SUPPLIED WITH CARBIDE INSERTS
CARBIDE INSERTS:
- FOR 3/8” AND 1/2” BORING BARS
- FOR 5/8” AND 3/4” BORING BARS
