BORING HEADS & ACCESSORIES
49.99

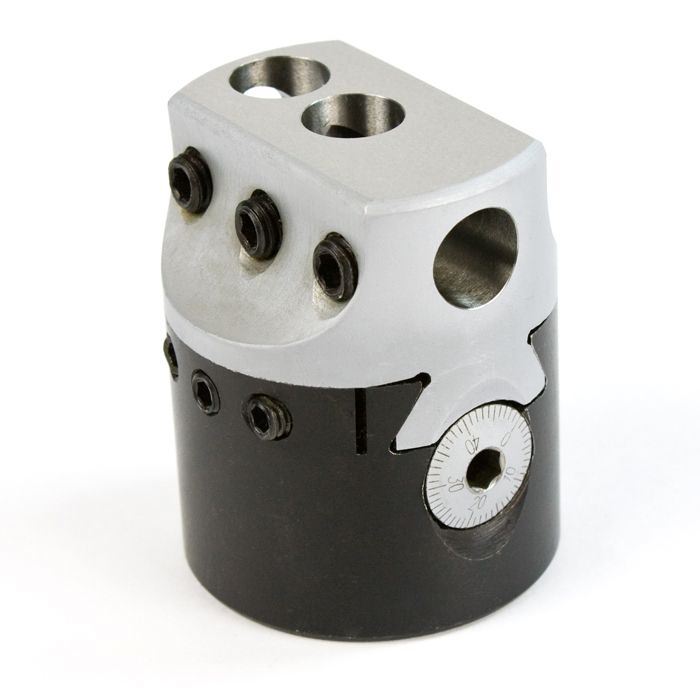

2" Precision Adjustable Boring HeadSKU 676-8071$59.99 $49.9949.99
read more ▼
- Head size: 2"
- Mounting Thread: 7/8-20
- Boring bar Hole: 1/2"
- Maximum Offset: 5/8"
- Graduations: 0.001/0-50, Center Distance bt 2 bottom hole: 0.60"
115.00
3'' PRECISION ADJUSTABLE BORING HEAD WITH R-8 SHANKSKU 810-1005$129.99 $115.00115.00
read more ▼
3'' PRECISION ADJUSTABLE BORING HEAD WITH R-8 SHANK
- Smaller backlash allows the operator to be able to dial in on the desired travel much easier.
- Internal bore within H7 specification to give tight fitting with cutting's shank
- Nickel plate finished have a great advantage over black oxide finish
- 1 division is equaled to 0.001" travel in radius
SPECS:
- Head size: 3"
- Boring bar Hole: 3/4"
- Mounting Thread: 1-1/2"-18
- Graduations: 0.001/0-50
- With R8 Shank
- Hardened and ground adjusting screw along with a wide base design guarantees long life and trouble free use
- Boring bar with R8 shank and 3" Head
109.00
2" BORING HEAD WITH R8 SHANK & 9 Pc. CARBIDE BORING BARSSKU 810-1004B$119.99 $109.00109.00
read more ▼

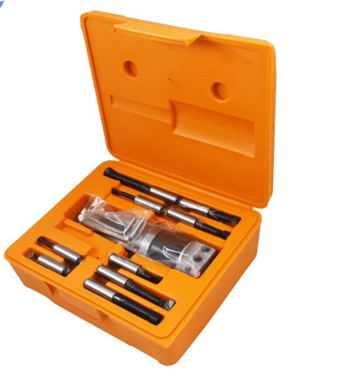

Kit includes 2" boring head, R8 shank, & 9 piece C6 carbide tipped boring bar set
- HIGH QUALITY, built to perform
- High Precision, .0005″ Adjustment Per Graduation
9 Pc. 1/2" Carbide Tipped Boring Bar Set
- 9 Piece boring bar set features C-6 carbide for use in harder materials but also works great in aluminum and other soft metals
- All shanks are held to 0.0000-0.0005" from the nominal diameter
- Made of special heat treated alloy steel
- Shank Diameter- 1/2"
2'' Boring Head
- Head size: 2"
- Boring bar Hole: 3/4"
- Tool Capacity (Cross Hole Diameter): 1/2"
- Head Dial: 7/8''-20
- Max offset: 5/8"
- Graduation: .002''
R-8 Shank Holder
- R-8 Shank to fit all of the most popular milling machines
- R-8 Shank to boring head thread is 1-1/2×18
79.95

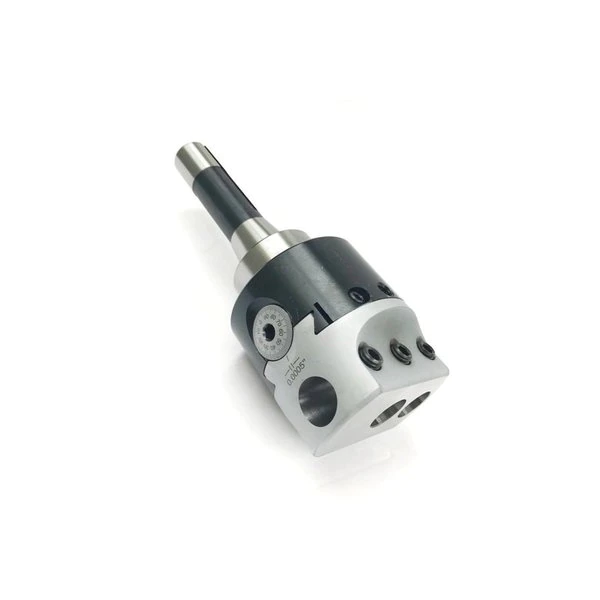

2" Precision Adjustable Boring Head With R-8 ShankSKU MAA-0609$79.9579.95
read more ▼
- Machined from high grade steel with tool blocks hardened and ground
- Ideal for mill or Jig bore operations
- Non-reflecting satin chrome body allows easy reading and adjustment
- Threaded back for interchangeable shanks
- Features .02 mm least count (boring ø double of least count
|
HEAD DIAMETER |
THREAD SIZE |
CROSS & VERTICAL HOLE SIZE |
CENTER DISTANCE B/W HOLES |
OVERALL LENGTH |
MAX OFF SET |
||
|
50MM |
7/8” x 20 |
12 MM |
15.5 MM |
62 MM |
16 MM |
*Quantity Pricing Available. Follow link for details.
