Drill Chuck Arbor, Taper Shank To Jacobs Taper, Morse Taper 1MT, Jacobs Taper 33JT

• Drill chuck arbor for 33 Jacobs Taper Drill Chuck
• Use in a 1 Morse Taper drill press spindle or tailstock quill
• This arbor has a tang on the 1MT side
• Hardened machined tool steel
• **Picture is an example of the arbor type not the actual arbor, please check your chuck and your machines needs
•

Drill chuck arbors are double ended steel shafts. One end is machined to fit a machine spindle and the other fits into the back of a drill chuck.

These arbors are typically used to hold Jacobs Taper-backed drill chucks in Morse Taper spindles/sockets.
These Morse Taper arbors have a tang end.

They are not available with a drawbar end.

3MT to 2JT Drill Chuck Arbor (morse taper)

• Morse Taper #3 (3MT) to Jacobs Taper #2 (2JT)
• Long end (with tang) is 3MT, short end is 2JT
• Made of precision ground, high grade tool steel
• Arbor will fit for all drill chucks that with a 2JT bore and will fit on any machine tool with a 3MT spindle
• High Quality

12003 3MT to 3JT Drill Chuck Arbor (morse taper)

12004 3MT to 4JT Drill Chuck Arbor (morse taper)

12005 3MT to 5JT Drill Chuck Arbor (morse taper)

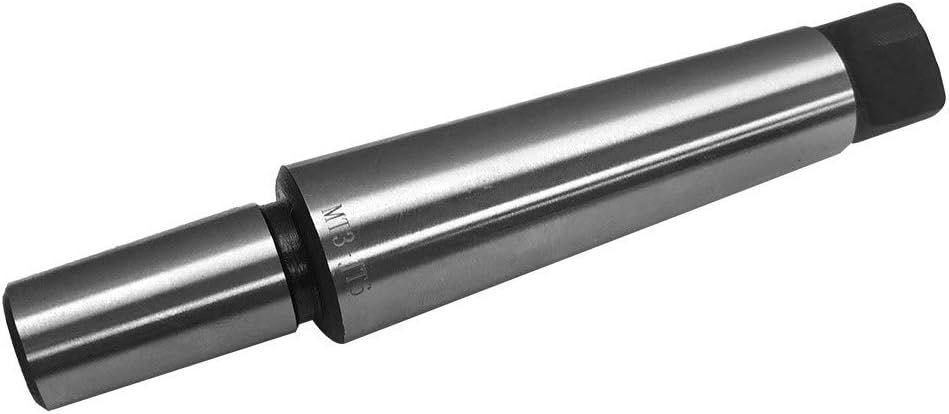

Jacobs 3MT Shank, JT6 Mount Taper, Drill Chuck Arbor

FEATURES:

• Morse Taper: 3; Jacobs Taper: 6
• Key Way Size is 4mm
• Made of High Grade Steel
• Long End Is 3MT, Short End Is 6JT
• Arbor Will Fit All Drill Chucks Thats With A 6JT Bore And Will Fit On Any Machine Tool With A 3MT Spindle

12033 3MT to 33JT Drill Chuck Arbor (morse taper)

14002 5MT to 2JT Drill Chuck Arbor (morse taper)

14003 5MT to 3JT Drill Chuck Arbor (morse taper)

14004 5MT to 4JT Drill Chuck Arbor (morse taper)

14005 5MT to 5JT Drill Chuck Arbor (morse taper)

14006 5MT to 6JT Drill Chuck Arbor (morse taper)

Hardened and precision ground.

SPECS:

• Mount Type: Jacobs Taper
• Hardened and precision ground.

SPECS:

The Morse taper end fits into a machine spindle and the Jacobs taper end is compatible with a Jacobs taper drill  Morse taper spindles are most often found on drill presses.

1. Manufactured from selected case-hardened steel, all arbors are case-hardened 54-58 HRC for increased resistance to wear

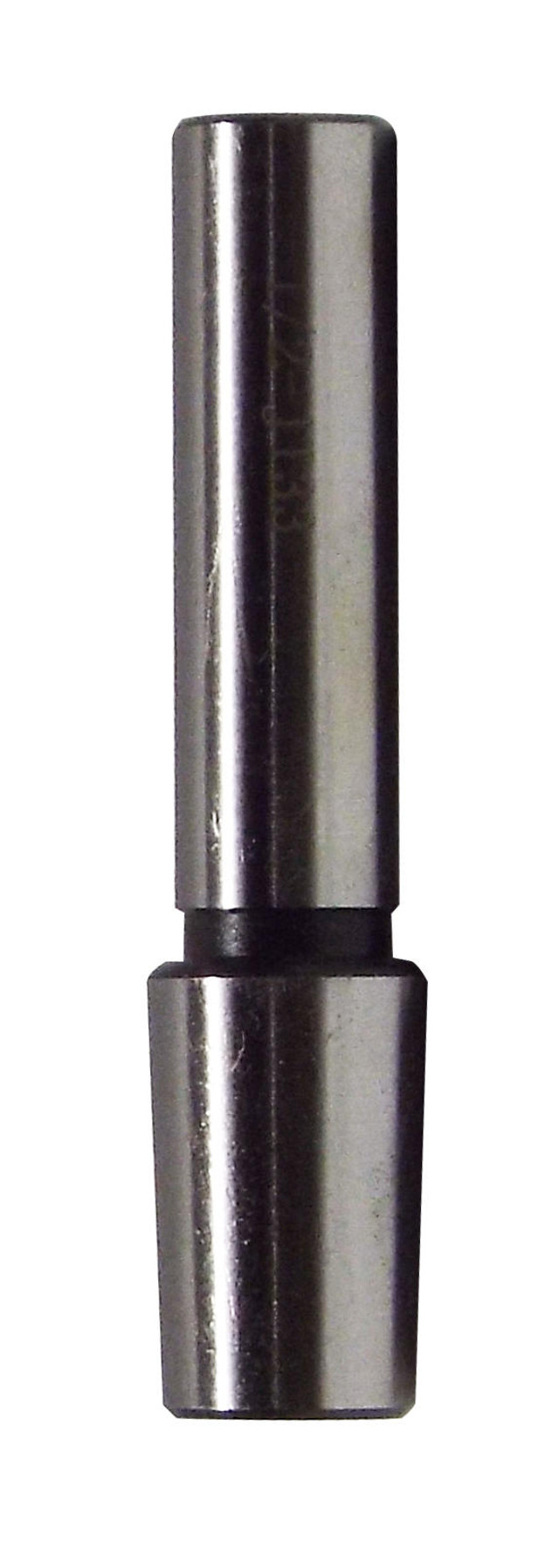

1" x 3" Straight Shank x 4JT Drill Chuck Arbor

Hardened and precision ground.

SPECS:

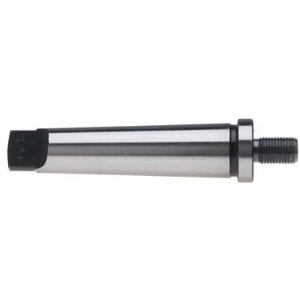

MCA-0868 3/8"-24 Thread x 2 MT Threaded Arbor

MCA-0869 1/2"-20 Thread x 2 MT Threaded Arbor

MCA-0870 5/8"-16 Thread x 2 MT Threaded Arbor

MCA-0897 3/8"-24 Thread x 3 MT Threaded Arbor

MCA-0898 1/2"-20 Thread x 3 MT Threaded Arbor

MCA-1492 3/8"-24 Thread x 1 MT Threaded Arbor

MCA-1493 1/2"-20 Thread x 1 MT Threaded Arbor
