POWER BRUSHES

Weiler 4" Crimped Wire Wheel

---

1/2"-3/8" Arbor Hole

Coarse Wire Size Made in U.S.A

Description:

•Crimped Wire Wheels

•For cleaning rust, scale, dirt, and paint; deburring; edge blending; roughening for adhesion; flash removal of rubber and plastic; finishing for appearance; and finish preparation prior to painting or plating.

•Narrow Brush Face

•Produces flexible brushing action; conforms to uneven surfaces or irregular shapes.

4" wheels are used on straight grinders. Crimped Wheel Brush, Diameter 4 Inches, Wire Size 0.014 Inch, Maximum Speed 12, 500 RPM, Arbor Hole 1/2-3/8 Inch, Face Width 1/2 Inch, Narrow Brush Face, Bench Grinder Wheel

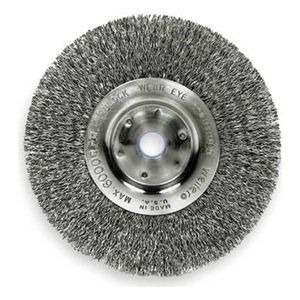

Weiler 01075 6" x 1/2"-5/8" Arbor Crimped Wire Wheel 3/4" Wide x .014 Wire Made in U.S.A. Dia. (In.) 6 Arbor Hole (In.) 5/8 to 1/2 Face Width (In.) 3/4 Wire Size (In.) 0.014 Max. RPM 6000 Application Cleaning Rust, Scale, Dirt, Paint, Deburring, Edge Blending, Roughening for Adhesion, Flash Removal of Rubber and Plastic Weight 1.000000 lbs SKUs 5X886 Description •Crimped Wire Wheels •For cleaning rust, scale, dirt, and paint; deburring; edge blending; roughening for adhesion; flash removal of rubber and plastic; finishing for appearance; and finish preparation prior to painting or plating. •Narrow Brush Face •Produces flexible brushing action; conforms to uneven surfaces or irregular shapes. 4" wheels are used on straight grinders. Crimped Wheel Brush, Diameter 6 Inches, Wire Size 0.014 Inch, Maximum Speed 6000 RPM, Arbor Hole 5/8-1/2 Inch, Face Width 3/4 Inch, Narrow Brush Face, Bench Grinder Wheel

Weiler 8" Crimped Wire Wheel Coarse Wire 5/8" Arbor

---

Weiler 8" Narrow Face Crimped Wire Wheel Brush provides a flexible brushing action and consistent performance for demanding light duty cleaning and deburring applications.

 Featuring

• 5/8" arbor hole for use on bench/pedestal grinder, CNC/milling/automatic machines and straight grinders.
• Intended for use on straight grinders and stationary machines such as bench or pedestal grinders and buffing lathes
• Featuring Weiler's solid ring construction, these radial brushes are available in heat treated steel, type 302 stainless steel and brass wire for use in a wide variety of applications
• Provides a flexible brushing action and consistent performance for demanding light duty cleaning and deburring applications.
• 1/2 in T of face plates
• Made of steel wire for long lasting durability.

SPECS:

• Crimped-structured design
• For general purpose applications.
• Medium face wheel.
• Diameter is 8"
• Max RPM is 6,000
• Wire size is 0.014".

Weiler 8" Crimped Wire Wheel Coarse Wire 5/8"-1/2" Arbor Made in U.S.A.

---

Made of steel wire for long lasting durability. Crimped-structured design. For general purpose applications. Medium face wheel. Diameter is 8". Max RPM is 6,000. Wire size is 0.014". Product Specifications BRAND Weiler MAXIMUM RPM 6000 WEIGHT LBS 1 ARBOR THREAD 5/8 - 1/2 in FACE PLATE THICKNESS INCHES 1/2 TRIM LENGTH NCHES 1.0625 DIAMETER INCHES 8 WIRE SIZE INCHES 0.014 STRUCTURE Crimped WIRE MATERIAL Steel FACE WIDTH INCHES 5/8

Weiler 5/8"-11 UNC to M10 x 1.25 Adaptor Made in U.S.A.

---



Weiler 5/8"-11 UNC to M10 x 1.50 Adaptor Made in U.S.A.

Weiler 1/2" x 1/4" Shank Solid End Brush .020 Wire Size made in U.S.A. For parts that could be damaged by the impact of a knot brush Applications: Light Duty, General Purpose Used With: Power Drills, Drill Presses, Die Grinders, Right-Angle Air Die Grinders Product Specifications APPLICATION Light Duty, General Purpose BRAND Weiler WIRE MATERIAL Steel WIRE SIZE INCHES 0.0200 MAX RPM 25000 WEIGHT LBS. 0.08 TRIM LENGTH INCHES 7/8 MANUFACTURER PART NUMBER 10004 STEM DIA. INCHES 1/4 DIAMETER INCHES 1/2 USED WITH Power Drills, Drill Presses, Die Grinders, Right-Angle Air Die Grinders

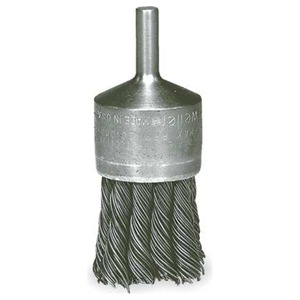

Weiler 3/4" Knot Wire End Brush features a hollow end and heavy-duty brushing action with some flexibility for more demanding cleaning and deburring applications in recessed areas. 1/4" stem diameter for use on die grinder and right angle die grinders.

FEATURES AND BENEFITS

Hollow End and Heavy-Duty Brushing Action with Some Flexibility

Ideal for more demanding cleaning applications in recessed areas

Weiler 1 1/8" x 1/4" Shank Extra Coarse Knot Style End Brush 20,000 RPM Made in U.S.A.

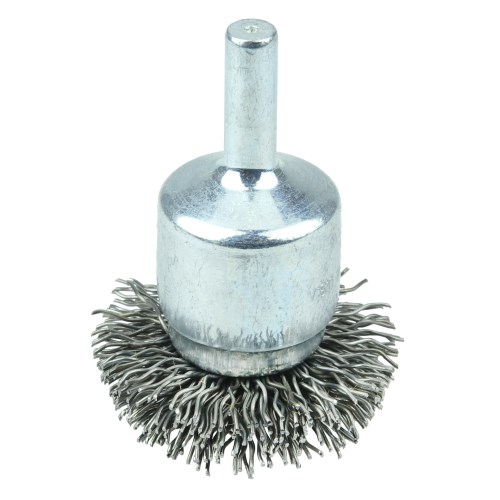

Weiler 1-1/2" Circular Flared Crimped Wire End Brush features crimped wire fill which has been "pre-flared" to match the working angle of the brush at operating speed and suited for addressing broad and slightly contoured surfaces. 1/4" stem diameter for use on die grinder and right angle die grinders.

FEATURES:

• Crimped wire fill which has been "pre-flared" to match the working angle of the brush at operating speed
• Suited for addressing broad and slightly contoured surfaces
• For use with die grinder and right-angle air die grinder power tools
• Accommodates the natural working angle, for a broad range of surfaces and contours
• 20,000 rpm
• Material Application: Steel

Weiler 4" Dia. x M10 x 1.25 Extra Coarse Knot Style Wheel Brush Made in U.S.A. 4" dia. x M10 x 1.25 arbor hole,extra coarse wire size,20,000 RPM. Wide face. Removal of rust,paint,scale and flashing. Cleaning large surfaces. Made in the U.S.A.

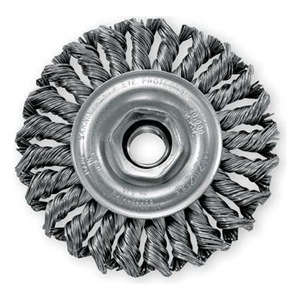

Weiler 4" Standard Twist Knot Wire Wheel Brush provides a heavy-duty brushing action with some flexibility for demanding deburring cleaning and surface preparation applications on somewhat irregular surfaces. 5/8"-11 nut for use on right angle grinders.

FEATURES:

• Ideal for demanding cleaning applications on somewhat irregular surfaces
• Provide heavy-duty brushing action with some flexibility
• Material Application: Steel
• Compatible Tool: Right Angle Grinder

SPECIFICATIONS

ANSI standard	B165.1
Application	Cleaning, Deburring
Arbor Hole Size	5/8"-11 UNC
Brand	Weiler
Commodity Code	9603 50 0000 - BRUSHES PARTS OF MACHINES
Compatible Tool	Right Angle Grinder
Country of Origin	United States of America
Diameter	4 IN
Face Width	1/2 IN
Fill Diameter	0.020 IN
Fill Material	Steel
Industry	Manufacturing
Item UPC Code	012382131203
Material Application	Steel
Maximum RPM	20000
Number of Knots	24
Product Type	Knot Wire Wheel - Standard Twist
Prop 65 Warning Description	WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to:www.P65Warnings.ca.gov
Sales Unit of Measure	Each/Pieces
Standard Pack Quantity	5
Stem Diameter
Trim Length	7/8 IN

Weiler 4" Dia. x M10 x 1.25 Coarse Knot Style Wheel Brush Made in U.S.A. 4" dia. x M10 x 1.25 arbor hole,coarse wire size,20,000 RPM. Narrow face. Weld splatter removal. Hot pass weld cleaning. Made in the U.S.A.

Weiler 4" Dia. x M10 x 1.50 Coarse Knot Style Wheel Brush Made in U.S.A. 4" dia. x M10 x 1.50 arbor hole,coarse wire size,20,000 RPM. Narrow face. Weld splatter removal. Hot pass weld cleaning. Made in the U.S.A.

Weiler 4" Dia. x 1/2"-13 UNC Coarse Knot Style Wheel Brush Made in U.S.A. 4" dia. x 1/2"-13 UNC arbor hole,coarse wire size,20,000 RPM. Narrow face. Weld splatter removal. Hot pass weld cleaning. Made in the U.S.A.

Weiler Roughneck Max 4 inch stringer bead wheels deliver unmatched weld cleaning performance by maximizing life, efficiency and consistency. The 4 inch brush is recommended for cleaning root pass welds, surface prep and other cleaning applications with a right angle grinder.

FEATURES:

• The operator can apply less pressure to clean, letting the wire do the work
• Unmatched cleaning power compared to competitors
• Improved feel and comfort during use makes brush operation effortless
• Narrow face brushes are suitable for cleaning root and hot passes and reaching into corners
• Stronger, sharper wire delivers consistency and performance you can count on
• Wider face wheels can be used for cleaning filler and cap passes as well as for other surface prep and cleaning applications
• The standard for high performance weld cleaning brushes

Weiler 3" Dia. x M10 x 1.25 Coarse Crimped Wire Cup Brush Made in U.S.A. 3" x M10 x 1.25 arbor hole,coarse wire size,14,000 RPM. Cleaning large size surfaces. Light deburring.

Weiler Power Cup Bushes are proudly made in the USA at our factory in Cresco, PA

• ROBUST CONSTRUCTION: Constructed with an internal steel ring to retain the fill material and ensure equal spacing around the perimeter to minimize vibration and extend life
• INDUSTRIAL GRADE CARBON STEEL WIRE FILL: Featuring heat treated, high tensile steel wire that has been drawn to the most exacting industry standards for superior fatigue resistance and brushing action
• IDEAL FOR FLEXIBLE CLEANING APPLICATIONS ON LARGE SURFACES: Demanding light to medium duty cleaning including corrosion/oxide removal, rust/paint removal, light deburring. Will not remove base material
• USE ON RIGHT ANGLE GRINDERS: Fits most power angle grinders with M10 x 1.25 thread
