LATHE CHUCKS
99.00
4" 3-Jaw Plain Back Scroll Lathe ChuckSKU 0403F0 $99.0099.00
0403F0 4" 3-Jaw Plain Back Scroll Lathe Chuck . This 3 -jaw self centering chuck features semi-steel body with plain back.
Includes two sets of jaws ,a wrench and mounting screws. Requires a mounting plate. For those of you who are not
familiar with the chuck mounting. "plain back" means that a backing plate is required to mount the chuck to your lathe.
Since their are so many different types of spindles on lathes,you would require a back plate that fits your lathe spindle
and then mount the chuck to the plate. The mounting bolts go thru the back of the plate into the back of the chuck,
usually on the edge of the chuck since there is a scroll mechanism for self-centering jaws.
read more ▼
169.99
4" Precision 4-Jaw Self-Centering Lathe ChuckSKU 0404F0 $169.99169.99
read more ▼
4" (100 mm) Precision 4-Jaw Self-Centering Lathe Chuck
Precision semi-steel body. American standard top quality.
2 pc tongue and groove reversible hardened jaws. Straight recess (plain back) spindle mounting.
- 4-jaw self-centering lathe chuck
- 4" (100 mm) diameter
- Plain back mounting
- Includes chuck key, inside and outside jaws
- High grade tool steel
189.99
8" 3-Jaw Plain Back Scroll Lathe Chuck SKU 0803F0 $189.99189.99
read more ▼
8" 3-Jaw Back Scroll Lathe Chuck .
- This 3 -jaw self-centering chuck features semi-steel body with plain back.
- Includes two sets of jaws, a wrench and mounting screws.
- Requires a mounting plate.
- PRECISION SEMI-STEEL BODIES.
- TOP QUALITY, AMERICAN STANDARD.
- TWO PCS TONGUE AND GROOVE REVERSIBLE HARDENED top & bottom JAWS.
- SPINDLE MOUNTING.
- 2-5/8" THRU HOLE DIAMETER
169.99
8" 4-JAW Lathe Chuck W/ Independent Jaws W/ 1-1/2"-8 Adapter semi-FinishSKU 0804FO $169.99169.99
read more ▼
8" (200mm) Precision 4-Jaw Self-Centering Lathe Chuck
99.99

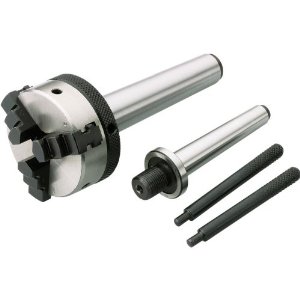

2" Dia.Self Centering Scroll Type 3 Jaw Lathe ChuckSKU MLC5491$99.9999.99
2" Dia. Self Centering Scroll Type 3 Jaw Lathe Chuck . Threaded back.
Set includes: MT#1,MT#2 with two keys
read more ▼
73.89
2" 3 Jaw Mini Self Centering Scroll Lathe Chuck Morse Taper MT 2SKU MLC5-5490$73.8973.89
read more ▼
- 3-jaw self-centering lathe chuck
- 2" (50 mm) diameter
- Includes reversible jaws and two tommy bars
Product description
- Chuck Size: 2"
- Shank: MT2
- Draw bar: 3/8"-16
- Thread size on the back of chuck: metric 14 x 1.0
Features:
- Inside Jaw Clamping Range: 0.03937-0.5905”
- Inside Jaw Jamming Range: 0.0787-1.8897“
- Outside Jaw Clamping Range: 0.787-1.8503”
- Medium duty type
- Shank can be removed
- Chuck is threaded back scroll, self-centering type
- Drawbar Thread Size: 3/8"-16
- Thread size on the back of chuck: metric 14 x 1.0
- Includes two keys
69.99
2" 3-Jaw Mini Self Centering Scroll Lathe Chuck Morse Taper MT 1SKU MLC5-5493 $69.9969.99
read more ▼
Average rating:
SPECS:
- Inside Jaw Clamping Range: 0.03937-0.5905“
- Inside Jaw Jamming Range: 0.787-1.8897”
- Outside Jaw Clamping Range: 0.787-1.8503“
- Medium duty type
- Shank can be removed
- Chuck is threaded back scroll, self-centering type
- Draw bar: 1/4"-20
- Thread size on the back of chuck: metric 14 x 1.0
- Includes two keys
178.80
6" 3-JAW SELF-CENTERING PLAIN BACK LATHE CHUCKSKU 0603FO$178.80178.80
6" - 3 JAWS Self-Centering Lathe Chuck With Plain Back
PRECISION SEMI-STEEL BODY
TOP QUALITY
AMERICAN STANDARD
TWO PCS TONGUE AND GROOVE REVERSIBLE HARDENED top & bottom JAWS.
STRAIGHT RECESS OR PLAIN BACK.
SPINDLE MOUNTING. 4"(100mm)
1-58" THRU HOLE DIAMETER
Dia. of back screws
Parameter circle: 285mm
Dia. of back recess circle: 260mm
Body height: 90mm
Overall height: 153mm
6" - 3 JAWS Self-Centering T.I.R.---0.003"
PRECISION SEMI-STEEL BODIES. TOP QUALITY. AMERICAN STANDARD.
TWO PCS TONGUE AND GROOVE REVERSIBLE HARDENED top & bottom JAWS. STRAIGHT RECESS OR PLAIN BACK MOUNTING. PLEASE SEE REAR PICTURE FOR BACK
SPINDLE MOUNTING. 1-5/8" THRU HOLE DIAMETER Back mounting screws distribution parameter dia: 142mm
read more ▼*Quantity Pricing Available. Follow link for details.
