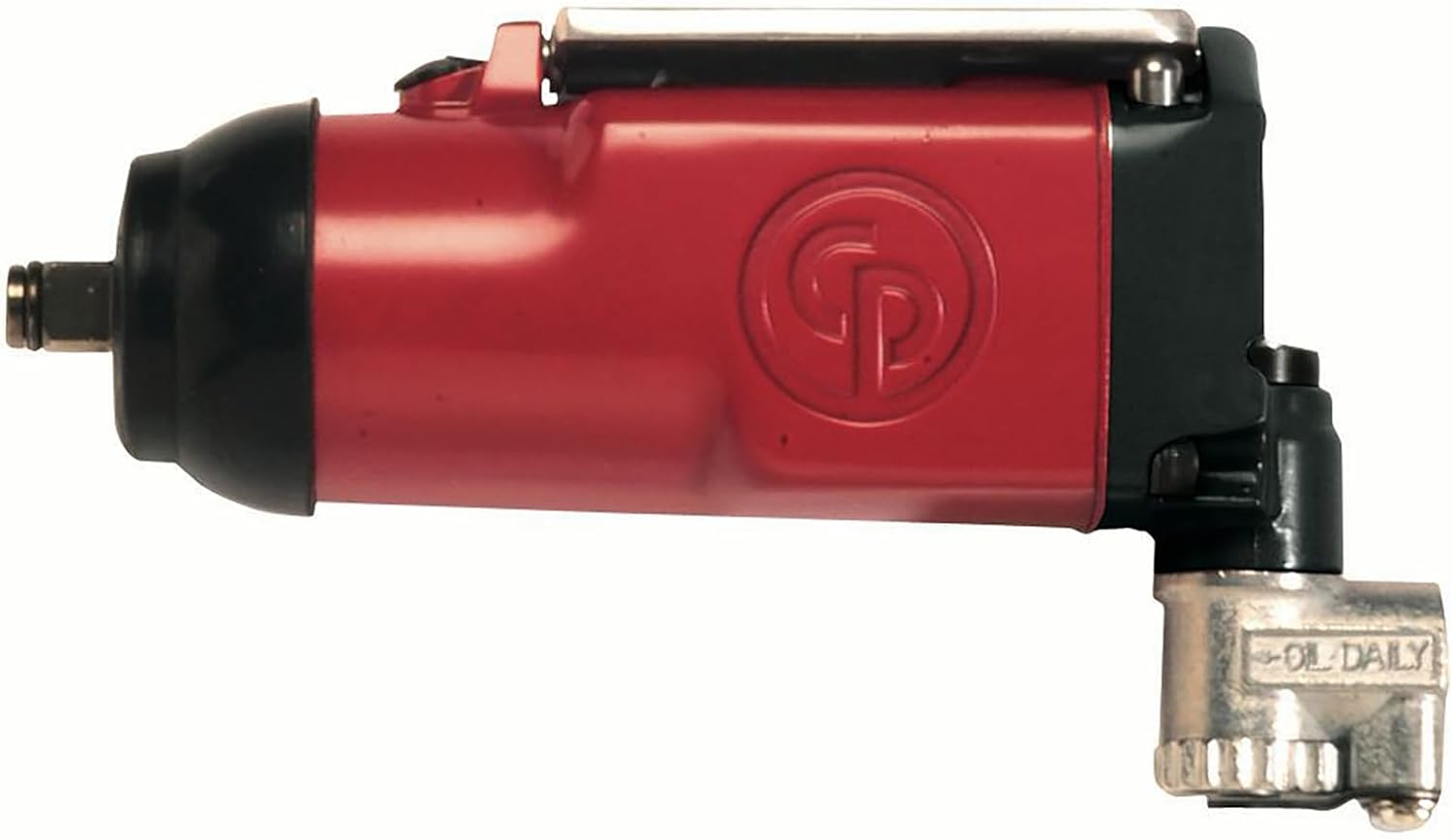

Chicago Pneumatic 3/8" drive Butterfly Air Impact Wrench
Chicago Pneumatic $209.99209.99The compact lightweight CP7722 Series 3/8" Impact wrench is made for transmission and engine repair works, body panels, oil pans, ignitions, motorcycle repair, and vehicle seats.
This impact wrench series designed for tight applications and is highly recommended. Its rocking dog impact mechanism and metal motor housing offer high durability.
High productivity is ensured with a torque of 90 ft.lbs / 122 Nm.
FEATURES:
- Perfect for assembly/disassembly operation with limited access areas or vertical tightening
- Butterfly forward/reverse throttle
- Rocking dog clutch for smooth operations and durability
- 4 Positive power settings
- Includes 360° air inlet swivel
Benefits:
• Metal housing and double rocking dog impact mechanism for high durability
• Power regulator at the back (4 power settings) and butterfly shift for forward / reverse for improved ergonomics
SPECS:
• Length (L): 160 mm
• Air inlet thread size (in): 1/4
• Impact mecanism: Rocking dog
• Body: Aluminum
• Blow per minute: 1400
• Sound Pressure: 97 dB(A)
• Output drive type: Sq
• Max torque reverse: 122 Nm
• Starting system: Butterfly trigger
• Max dynamic air working pressure: 6.3 bar
• Output retainer type: Friction ring
• Clutch lubrication type: Grease
• Torque limited: No
• Handle type: Butterfly
• Clutch housing: Aluminum
• Min working torque fwd: 7 Nm
• Min hose diam (5 m hose length) 10 mm
• Uncertainty vibration-K 1.4 m/s²
• Output drive size (in): 3/8
• Weight: 1 kg
• Max working torque fwd: 88 Nm
• Free Speed: 9500 rpm
More Details
Specifications
Design & Functions:
Uncertainty vibration-K: 1.4 m/sē
Starting system: Butterfly trigger
Max dynamic air working pressure: 6.3 bar
Output retainer type: Friction ring
