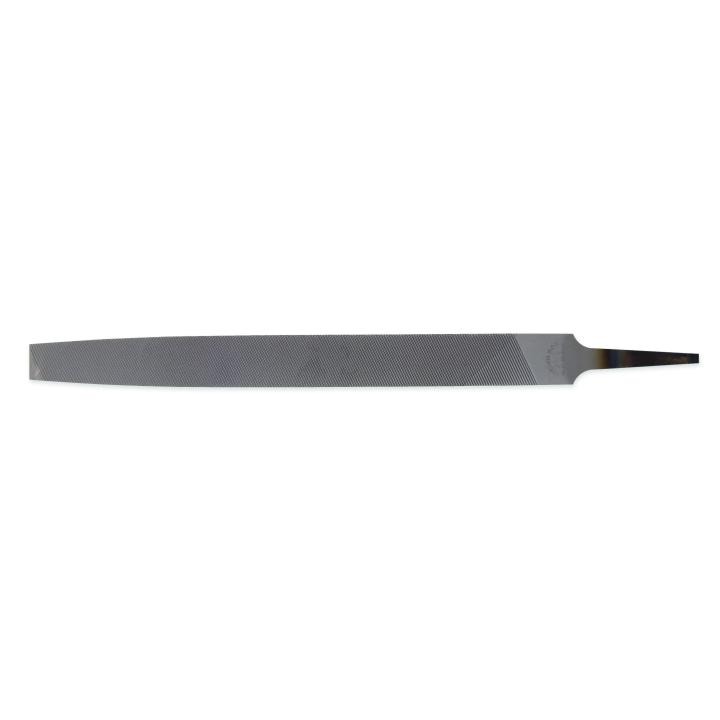

NICHOLSON 8" SMOOTH CUT FLAT FILE
NICHOLSON $10.9910.99FEATURES:
- Rectangular shape for smoothing and shaping straight surfaces, with tapered width to ease access in slots
- American pattern file for non-precision material removal
- Double-cut teeth on both sides for rapid removal of material
- Single-cut teeth on both edges for finishing, sharpening, and deburring
- Flat files, which are of rectangular cross section and have double cut teeth
- Used wherever metal must be removed rapidly and finish is of secondary importance
- Flat files are slightly tapered toward the points in both width and thickness and are cut on both sides
- American pattern
- Flat files are used for rapid material removal and general purpose applications.
- Smooth cut files are finer files and have the most teeth per inch. They are used for detailing and fine finishing work.
- Double cut files consist of two sets of teeth crisscrossing each other at opposite angles. They are used for heavy stock removal.
SPECS:
Manufacturer Part # | 03632NN |
File Type | Flat |
Length (Inch) | 8 |
Coarseness/Cut | Smooth Cut |
Cut Type | Double |
Overall Width/Diameter (Inch) | 25/32 |
Overall Thickness (Inch) | 13/64 |
Tang or Handle | Tang |
Flexible | No |
Length of Cut (Inch) | 8 |
Tool Application | Machining |
More Details
03632 NICHOLSON 8" SMOOTH CUT FLAT FILE
