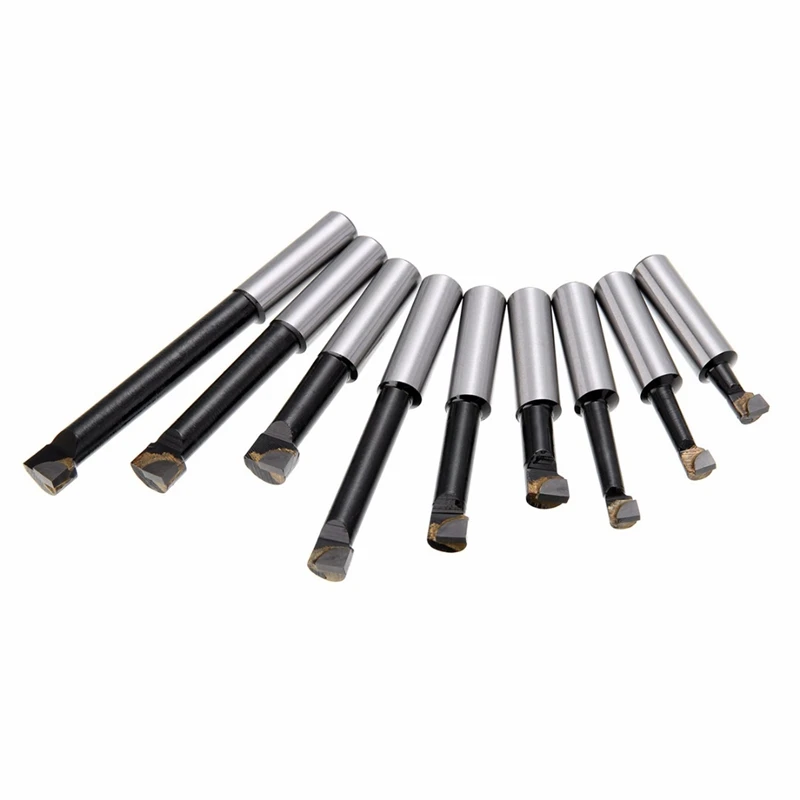

5/8" Shank 12 pc. Carbide Tipped Boring Bar Set

More Details

5/8" Shank 12 pc. Carbide Tipped Boring Bar Set . C-6 carbide for steel and alloy steel it is well designed so that the same bar can bore flat bottom holes or faces. Alloy steel shanks are hardened and ground to +0"-.0005".

• General purpose cutting tools designed to be used for machining a variety of different sized holes.
• For boring operations in both large or small starting holes.
• Used for a variety of different boring operations.
• Used in a toolholder for lathe boring applications or they may be mounted in a boring head for boring in a milling machine and can also be used in other machines as well.
• Right Hand.
• End Type: Single
• High speed steel with carbide tips.
• Bright and black oxide finishes.

SPECS:

• Shank Diameter- 5/8
• All shanks are held to 0.0000-0.0005" from the nominal diameter and made of special heat treated alloy steel
• Minimum Boring Range: 5/16" - 11/16" (see below)
• Overall Length: 2-1/4" to 5-1/4" (see below)
• Boring Depth Range: 3/4" to 3-3/4" (see below)
