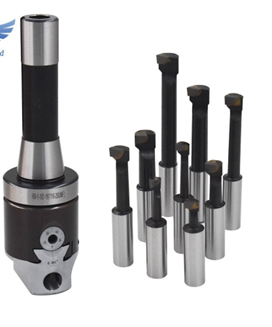

2" BORING HEAD WITH R8 SHANK & 9 Pc. CARBIDE BORING BARS
COMPLETE MANUACTURING EQUIPMENTKit includes 2" boring head, R8 shank, & 9 piece C6 carbide tipped boring bar set
- HIGH QUALITY, built to perform
- High Precision, .0005″ Adjustment Per Graduation

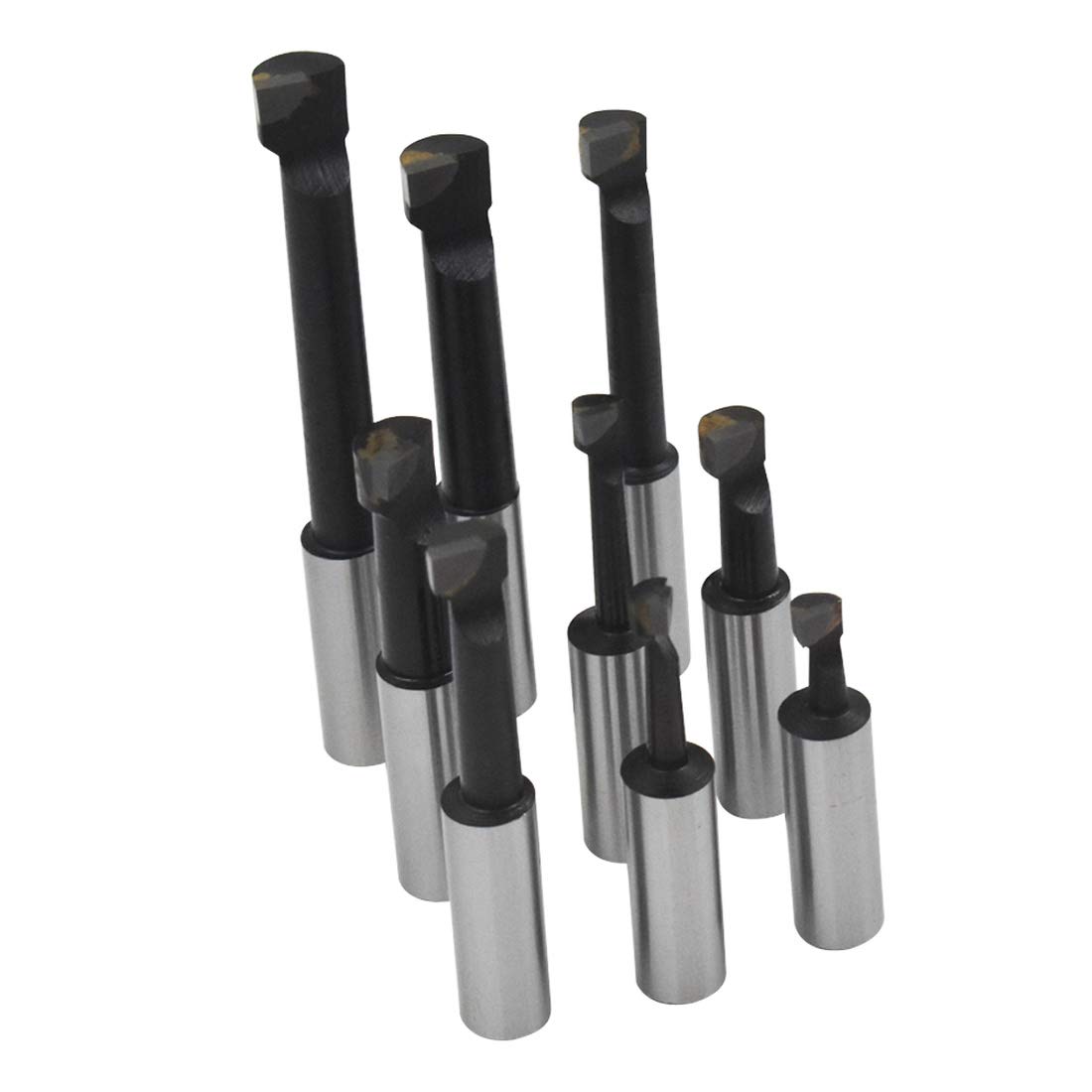

9 Pc. 1/2" Carbide Tipped Boring Bar Set
- 9 Piece boring bar set features C-6 carbide for use in harder materials but also works great in aluminum and other soft metals
- All shanks are held to 0.0000-0.0005" from the nominal diameter
- Made of special heat treated alloy steel
- Shank Diameter- 1/2"

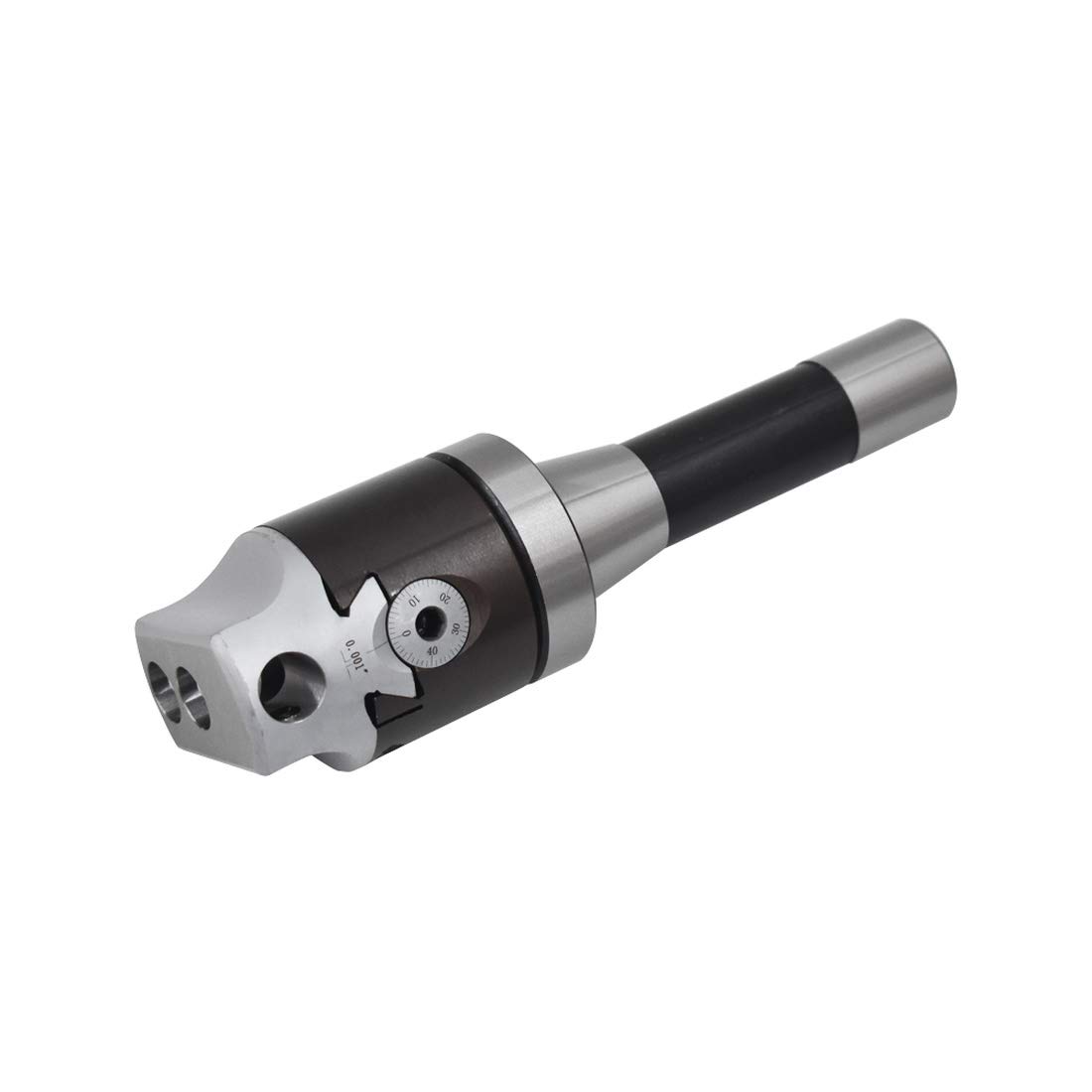

2'' Boring Head
- Head size: 2"
- Boring bar Hole: 3/4"
- Tool Capacity (Cross Hole Diameter): 1/2"
- Head Dial: 7/8''-20
- Max offset: 5/8"
- Graduation: .002''
R-8 Shank Holder
- R-8 Shank to fit all of the most popular milling machines
- R-8 Shank to boring head thread is 1-1/2×18
As Seen In...
More Details
Boring head kit includes: 2" adjustable boring head, R8 arbor, 9pcs 1/2" carbide tipped boring bars, fitted in plastic suitecase.
* THE WIDE BASE BEARING SURFACE ASSURES MAXIMUM RIGIDITY EVEN WHEN THE BAR HOLDER IS OFFSET POSITION.
* HEAD HEIGHT: 2-13/32"
* 2 VERTICAL AND 1 HORIZONTAL HOLES.
* HOLE SIZE: 1/2"
* CENTER DISTANCE BETWEEN HOLES: 5/8".
* CROSS DIA.: 1/2"
* OFFSET: 5/8"
* THREAD BACK: 7/8"-20
* WITH REMOVEABLE R-8 SHANK.
Specifications
Material: Carbide
Shank Type: Straight
Brand: All Industrial Tool Supply
Tool Flute Type: Straight
