Weiler 1" Crimped Wire End Brush features a solid end construction and very flexible brushing action. Ideal for more demanding light duty cleaning applications in corners and hard-to-reach areas. 1/4" stem diameter for use on die grinder, drill, drill press and right angle air die grinder.
Material Application:
- Armored Steel
- Cast Iron
- Ductile Iron
- Steel
- Tool Steel
- Although they can also be mounted onto a drill, the speed and power of that tool will lightweight the
effectiveness of the brush - Crimped wire wheels with a permanently-attached 1/4 in stem or shank are primarily intended for use on high speed die grinders
- Featuring Weiler's solid ring construction, these radial wheels are available in heat-treated steel, type 302 stainless steel and brass wire
- Provide a Very Flexible Brushing Action

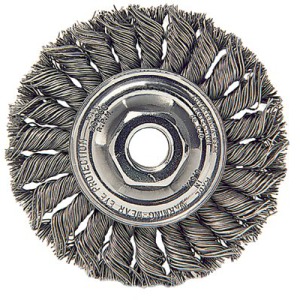

Weiler 4" Standard Twist Knot Wire Wheel Brush provides a heavy-duty brushing action with some flexibility for demanding deburring cleaning and surface preparation applications on somewhat irregular surfaces. 5/8"-11 nut for use on right angle grinders.
FEATURES:
- Ideal for demanding cleaning applications on somewhat irregular surfaces
- Provide heavy-duty brushing action with some flexibility
-
Material Application: Steel
-
Compatible Tool: Right Angle Grinder
SPECIFICATIONS
| ANSI standard | B165.1 |
| Application | Cleaning, Deburring |
| Arbor Hole Size | 5/8"-11 UNC |
| Brand | Weiler |
| Commodity Code | 9603 50 0000 - BRUSHES PARTS OF MACHINES |
| Compatible Tool | Right Angle Grinder |
| Country of Origin | United States of America |
| Diameter | 4 IN |
| Face Width | 1/2 IN |
| Fill Diameter | 0.020 IN |
| Fill Material | Steel |
| Industry | Manufacturing |
| Item UPC Code | 012382131203 |
| Material Application | Steel |
| Maximum RPM | 20000 |
| Number of Knots | 24 |
| Product Type | Knot Wire Wheel - Standard Twist |
| Prop 65 Warning Description | WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to:www.P65Warnings.ca.gov |
| Sales Unit of Measure | Each/Pieces |
| Standard Pack Quantity | 5 |
| Stem Diameter | |
| Trim Length | 7/8 IN |
Weiler 4" Standard Twist Knot Wire Wheel Brush provides a heavy-duty brushing action with some flexibility for demanding deburring cleaning and surface preparation applications on somewhat irregular surfaces. 1/2"-13 nut for use on right angle grinders.
FEATURES:
| • Provide heavy duty brushing action with some flexibility |
| • Ideal for demanding cleaning applications on somewhat irregular surfaces |
| • 7/16 in T at face plate |
SPECS:
| Brand | Weiler® |
| Arbor Hole Size | 1/2"-13 |
| Arbor/Shank Size | 1/2"-13 UNC |
| Attachment Type | Threaded Arbor |
| Brush Diameter | 4 |
| Brush Width | 1/2 |
| Face Width | 1/2 |
| Filament/Wire Diameter | 0.02 |
| Filament/Wire Type | Standard/Twist Knot |
| Fill Material | Steel |
| Maximum Speed | 20000 |
| Trim Length | 7/8 |
| Wire Diameter | 0.02 |
| Wire Material | Steel |
| Wire Type | Standard/Twist Knot |
Weiler 4" Standard Twist Knot Wire Wheel Brush provides a heavy-duty brushing action with some flexibility for demanding deburring cleaning and surface preparation applications on somewhat irregular surfaces. M10 x 1.50 nut for use on right angle grinders.
FEATURES:
| • Provide heavy duty brushing action with some flexibility |
| • Ideal for demanding cleaning applications on somewhat irregular surfaces |
| • 7/16 in T at face plate |
SPECS:
| Brand | Weiler® |
| Arbor Hole Size | M10x1.5 |
| Arbor/Shank Size | M10x1.5 |
| Attachment Type | Threaded Arbor |
| Brush Diameter | 4 |
| Brush Width | 1/2 |
| Face Width | 1/2 |
| Filament/Wire Diameter | 0.02 |
| Filament/Wire Type | Standard/Twist Knot |
| Fill Material | Steel |
| Maximum Speed | 20000 |
| Trim Length | 7/8 |
| Wire Diameter | 0.02 |
| Wire Material | Steel |
| Wire Type | Standard/Twist Knot |
| Quantity | 1+ |
| Price | $28.99 |

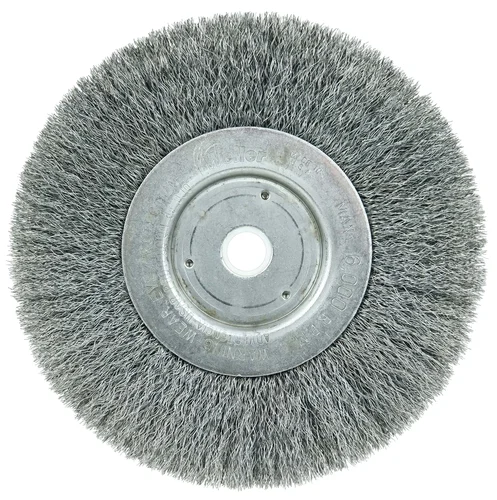

FEATURES AND BENEFITS
| Intended for use on straight grinders and stationary machines such as bench or pedestal grinders and buffing lathes |
| Featuring Weiler's solid ring construction, these radial brushes are available in heat treated steel, type 302 stainless steel and brass wire for use in a wide variety of applications |
| Provides a flexible brushing action and consistent performance for demanding light duty cleaning and deburring applications |
| 1/2 in T of face plates |
SPECIFICATIONS
| ANSI standard | B165.1 |
| Application | Cleaning, Deburring |
| Arbor Hole Size | 5/8 IN |
| Attachment Type | Unthreaded Hole |
| Brand | Weiler |
| Commodity Code | 9603 50 0000 - BRUSHES PARTS OF MACHINES |
| Compatible Tool | Bench/Pedestal Grinder, CNC/Milling/Automatic Machine |
| Country of Origin | United States of America |
| Diameter | 8 IN |
| Face Width | 3/4 IN |
| Fill Diameter | 0.0118 IN |
| Fill Material | Steel |
| Industry | Facility Maintenance, Manufacturing |
| Item UPC Code | 012382011659 |
| Material Application | Armored Steel, Cast Iron, Ductile Iron, Steel, Tool Steel |
| Maximum RPM | 6000 |
| Product Type | Crimped Wire Wheel - Narrow Face |
| Prop 65 Warning Description | WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to:www.P65Warnings.ca.gov |
| Sales Unit of Measure | Each/Pieces |
| Standard Pack Quantity | 1 |
| Stem Diameter | |
| Stem Length | |
| Thickness at Face Plates | 1/2 IN |
| Trim Length | 2-1/16 IN |
Weiler 8" Standard Twist Knot Wire Wheel Brush provides a heavy-duty brushing action with some flexibility for demanding deburring cleaning and surface preparation applications on somewhat irregular surfaces. Featuring Weiler's individual knot hole construction, these radial brushes are available in heat-treated steel, type 302 stainless steel and bronze wire for use in a wide variety of applications. 5/8" arbor hole for use on bench/pedestal grinder, die grinder, right angle die grinder and straight grinders.
Ideal for demanding cleaning applications on somewhat irregular surfaces
Provide heavy-duty brushing action with some flexibility
Features:
- THE TRUSTED BRAND: For straight grinders, stationary bench or pedestal grinders, and buffing lathes
- HEAVY DUTY ACTION: For demanding applications like surface peeling, grinding, and adhesion treatment
- BETTER SURFACE PREPARATION: For removing rust, paint, weld scale, spatter, and heavy corrosion
- HIGH TENSILE STRENGTH: Steel fill brushes are great for working on carbon steel surfaces
- MADE IN USA
SPECS:
- Brush dia 8 in,
- Trim length 1-5/8 in
- Width 5/8 in
- Wire dia .012 in
- Arbor size 5/8
| Material | Alloy Steel |
| Brand | Weiler |
| Grit Material | Carbon Steel,Steel |
| Bristle Type | Steel |
| Compatible Material | Steel;armored Steel;cast Iron;ductile Iron;tool Steel |
Weiler Roughneck Max 4" stringer bead wheels deliver unmatched weld cleaning performance by maximizing life, efficiency and consistency. This brush is recommended for cleaning root pass welds, surface prep and other cleaning applications. 5/8"-11 nut for use on right angle grinders.
FEATURES:
- The 4" brushes are recommended for cleaning root pass welds, surface prep and other cleaning applications.
- Narrow Face Brushes are Suitable for Cleaning Root and Hot Passes and Reaching Into Corners.
- deliver unmatched weld cleaning performance by maximizing life, efficiency and consistency.
Weiler 8" Crimped Wire Wheel Coarse Wire 5/8"-1/2" Arbor Made in U.S.A.
Made of steel wire for long lasting durability. Crimped-structured design. For general purpose applications. Medium face wheel. Diameter is 8". Max RPM is 6,000. Wire size is 0.014". Product Specifications BRAND Weiler MAXIMUM RPM 6000 WEIGHT LBS 1 ARBOR THREAD 5/8 - 1/2 in FACE PLATE THICKNESS INCHES 1/2 TRIM LENGTH NCHES 1.0625 DIAMETER INCHES 8 WIRE SIZE INCHES 0.014 STRUCTURE Crimped WIRE MATERIAL Steel FACE WIDTH INCHES 5/8
Weiler 1-1/2" Circular Flared Crimped Wire End Brush features crimped wire fill which has been "pre-flared" to match the working angle of the brush at operating speed and suited for addressing broad and slightly contoured surfaces. 1/4" stem diameter for use on die grinder and right angle die grinders.
FEATURES:
- Crimped wire fill which has been "pre-flared" to match the working angle of the brush at operating speed
- Suited for addressing broad and slightly contoured surfaces
- For use with die grinder and right-angle air die grinder power tools
- Accommodates the natural working angle, for a broad range of surfaces and contours
- 20,000 rpm
- Material Application: Steel

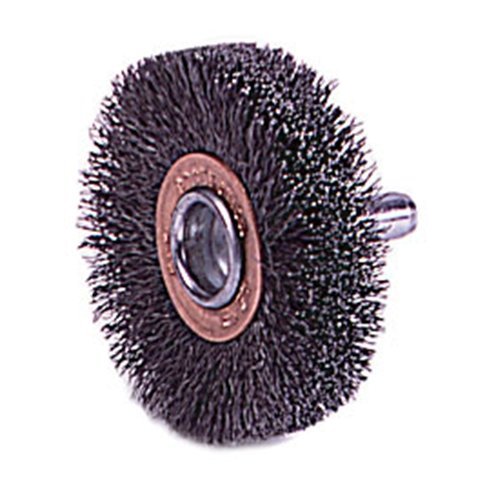

Weiler 1-1/4" Wide Face Stem-Mounted Crimped Wire Wheel provides a flexible brushing action and consistent performance for demanding light-duty cleaning and deburring applications on steel.
FEATURES:
- The permanently attached 1/4 in stem are primarily intended for use on high speed die grinders.
- Although they can also be mounted onto a drill, the speed and power of that tool will decrease the effectiveness of the brush.
- Provides a flexible brushing action and consistent performance for demanding light duty cleaning and deburring applications
- Crimped wire wheels with a permanently-attached 1/4 in stem or shank are primarily intended for use on high speed die grinders
- Featuring Weiler's solid ring construction, these radial wheels are available in heat-treated steel, type 302 stainless steel and brass wire.
- Wide face · Covers a broader surface area
- Material Application: Steel
SPECIFICATIONS:
• Trim Length: 1/2 in
• Fill Diameter: 0.0080 in
• Fill Material: Steel
• Diameter: 1 1/2 in
• Width: 1/2 in
Weiler 2-3/4" Single Row Knot Wire Cup Brush provides heavy-duty brushing action with some flexibility. Ideal for demanding cleaning applications on relatively flat surfaces. 5/8"-11 nut for use on right angle grinders.
FEATURES:
- Provides Heavy-Duty Brushing Action with Some Flexibility
- Ideal for Demanding Cleaning Applications on Relatively Flat Surfaces
Weiler 2-3/4" Single Row Knot Wire Cup Brush provides heavy-duty brushing action with some flexibility. Ideal for demanding cleaning applications on relatively flat surfaces. M10 x 1.25 nut for use on right angle grinders.
